C2 Meter
C² Meter improves gold recovery by automating carbon measurement and control with easy set-up and calibration.
Make an EnquiryProduct Features
- Accurate measurement and control
- Continuous online measurement of carbon concentration in a pulp
- Operator-friendly
- Robust construction
- Reduced dependence on plant personnel
- Easy installation and calibration
Product Overview

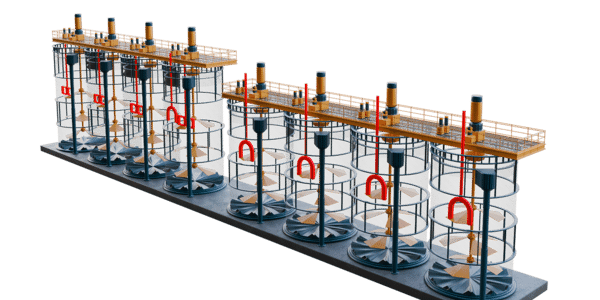

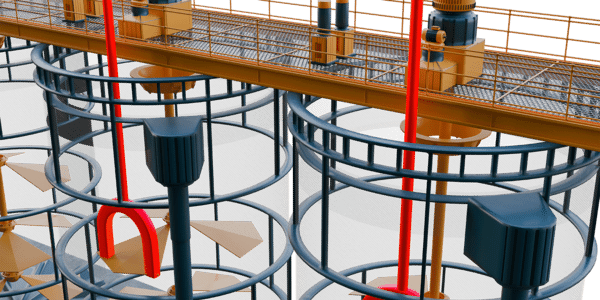

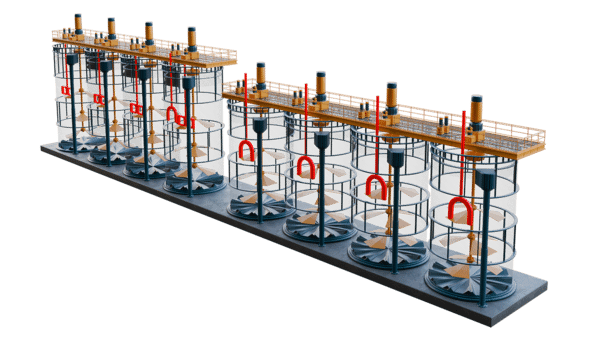

C² Meter online carbon measurement instrumentation, from Mintek, improves gold recovery by optimising carbon movement control and carbon concentration.A critical parameter in the efficient operation of Carbon-in-Leach (CIL) and Carbon-in-Pulp (CIP) processes is the accurate measurement and control of carbon concentration. C² Meter allows quick setup, easy installation and calibration as opposed to traditional manual measurement methods, which can be irregular, time consuming and inaccurate. This can lead to poor carbon management in the circuit and inefficient gold recovery.
The C² Meter comprises an immersion probe and associated control panel. The probe contains a matched transmitter/receiver pair of piezoelectric (PZT) ceramic transducers to continuously measure the carbon concentration using ultrasound. The instrument is robust and has high availability.
It’s supplied with a 100–240V AC power supply, a 4–20mA output, an error output relay and one 4–20mA optional density meter input.
The C² Meter can be used together with the Carbon Transfer Controller to reduce gold losses. The controller is part of Leachstar, an advanced control suite designed specifically for gold circuits.
Product Typical Uses
The C² Meter is used by gold mining operators to automate the measurement and control of carbon concentration in CIL and CIP processes circuits to enhance gold recovery.Product Benefits
- Improve gold recovery by automating carbon measurement and control.
- Measure carbon concentration in a pulp continuously and accurately.
- Reduce carbon losses through early detection of carbon screen leakage.
- Quick setup, and easy installation and calibration, compared to traditional measurement methods.
- Use with the Carbon Transfer Controller to reduce gold losses.
