LTM Level Probe

The LTM Level Probe provides accurate and effective pulp, slurry and water level measurement for the mining industry.

Make an Enquiry

Product Features

Continuous level measurement in metallic vessels up to 3m in height
Ideal for adhesive and pasty media
Level measurement of foaming media
Minimum product conductivity 1 µS/cm
Substitute for ﬂoat sensors
For media with homogenous conductivity

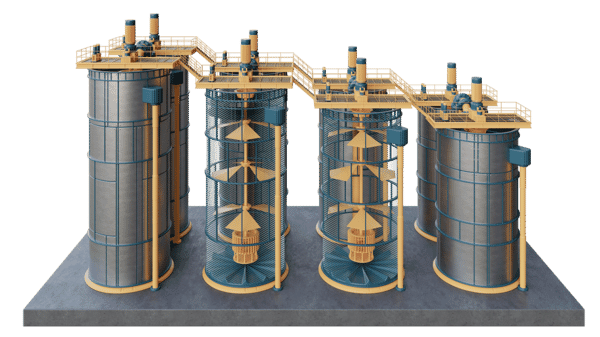

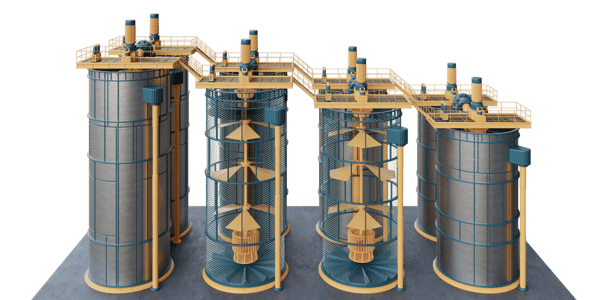

LTM-Level-Probe_Flotation-Tanks-Xray_hero

Product Overview

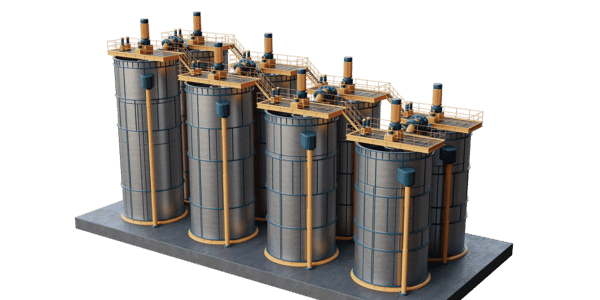

The LTM Level Probe provides accurate level measurements across various applications – including flotation banks, individual flotation cells or in concentrate sumps – to provide a consistent and accurate pulp level. The unique measuring principle of the LTM Level Probe allows it to measure the slurry level and ignore the froth component of the flotation cell.

Technologies such as float balls and ultrasonic targets are often adversely affected by the build-up of froth, foam and solids. However, these conditions have no effect on the LTM Level Probe as it has no moving parts.

The LTM Level Probe is engineered to be robust and will provide years of operation when installed correctly.

Product Typical Uses

Molycop's LTM Level Probe is used by mining operators to achieve precise pulp, slurry and water level measurements in flotation banks, individual flotation cells and concentrate sumps.

Product Benefits

Enhanced accuracy: The LTM Level Probe's high 1% measurement accuracy and 1% measurement linearity ensures precise slurry level monitoring.
Reliable foam detection: The system's function principle analyses electrical resonance properties to detect foam and suppress it in the results. This feature ensures reliable measurements and prevents erroneous readings caused by foam adhesions.
Conductive working principle: The LTM Level Probe's conductive working principle is not affected by froth buildup. This ensures accurate readings even in frothy conditions, making it ideal for mineral processing applications.
Fast and instantaneous measurements: The LTM Level Probe has near-instantaneous measurement capability, with measurements taken in just 100 milliseconds. This quick response time enables real-time monitoring and control of slurry levels.
Robust construction: The LTM Level Probe is durably constructed, with a complete 316 stainless steel rod and 304 stainless steel head. This ensures longevity and resistance to water, slurry and dust, making it suitable for harsh mineral processing environments.
Seamless integration: The LTM Level Probe is compatible with existing PLC, DCS and SCADA systems, allowing for easy data integration and monitoring. Additionally, web-based trending and reporting capabilities provide comprehensive data analysis and insights.
High-quality hardware and remote support: The LTM Level Probe is a premium solution with high-quality hardware components, ensuring reliable and long-lasting performance with remote support available.

Technical Data

Description	Details	Value Limits
Rod length EL		3000 mm max.
Rod diameter		10 mm
Measurement range		50...3000 mm
Process connection	thread	G1.5”
Process pressure		max. 16 bar
Tightening torque		10 Nm
Materials	head adapter isolating part rod	stainless steel 1.4305 stainless steel 1.4301 PEEK stainless steel 1.4404, Ra ≤ 0.8 µm
Temperature range	ambient storage process	0...70 °C -40...85 °C -10...140 °C
Level measurement	parameters/settings	see table
Resolution	rod length > 500 mm rod length < 500 mm	< 0.1 % of upper range value (= rod length) < 0,5 mm
Linearity		< 1.0 % of upper range value (= rod length)
Reproducibility	rod length > 500 mm rod length < 500 mm	< 0.2 % of upper range value (= rod length) < 1,0 mm
Response time		< 100 ms
Supply		19...36 V DC
Output	signal burden parameters/settings	analog 4...20 mA, galvanic separated to housing, 2-wire loop see separate graphic see table
Electrical connection		M12-plug, 1.4301, 4-pin
Protection class		IP 69 K
Weight		550 g with rod length 1.5 m
